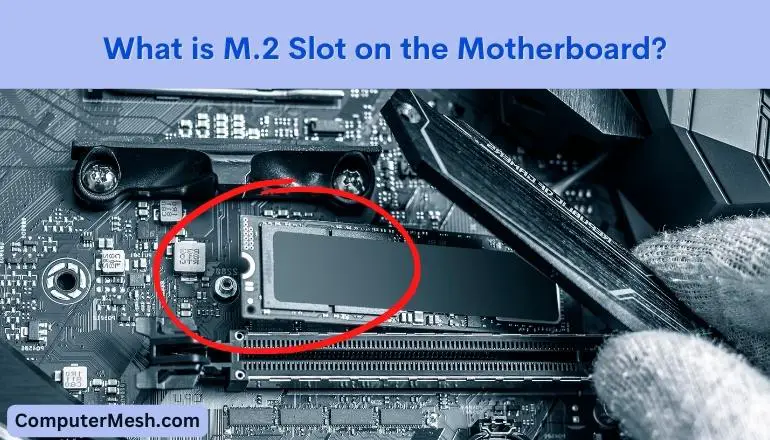

What is M.2 Slot?
The M.2 slot is a compact connector on modern motherboards designed for high-speed storage devices like NVMe SSDs. It supports both SATA and PCIe interfaces, enabling direct communication with the CPU for optimal performance.
How M.2 Slot Works
An M.2 slot connects via PCIe lanes directly to the CPU or chipset. When an M.2 drive is inserted, it uses a keyed notch for alignment and establishes a point-to-point connection. Data transfer occurs over PCIe lanes, leveraging high bandwidth for rapid throughput. Key components include:
- PCIe bus for raw speed, with lanes scaling up to x4.
- NVMe protocol support, allowing parallel data queues and low-latency access.
- Integrated controller on the SSD managing read/write operations directly without intermediaries.
Performance Explanation
M.2 slots significantly boost system performance through higher speeds and efficiency. With PCIe 4.0, for instance, peak theoretical speeds reach 7000 MB/s for sequential reads, far surpassing SATA's 600 MB/s limit. Key performance factors include:
- Speed: PCIe lanes enable multi-gigabit per second transfer rates, reducing boot and load times.
- Latency: Direct CPU linkage minimizes delays to microseconds, enhancing responsiveness for tasks like gaming or video editing.
- Thermal management: Built-in heat spreaders in some slots prevent throttling under sustained workloads.
For best results, ensure your motherboard supports the required PCIe generation and the drive uses NVMe over SATA to maximize bandwidth.
