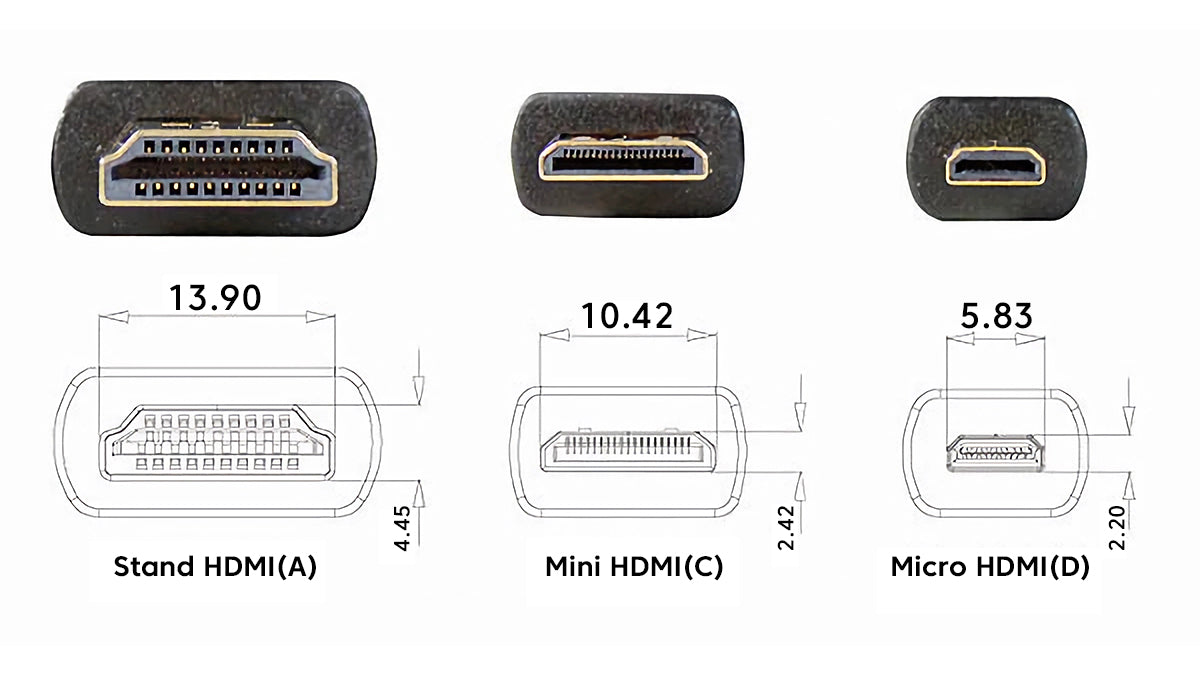

The standard HDMI Type-A connector measures 13.9mm x 4.45mm. In contrast, the Mini HDMI (Type-C) connector is significantly smaller at 10.42mm x 2.42mm.
Key Differences Summarized
- Size: Mini HDMI port saves significant space, crucial for compact devices like tablets, camcorders, and ultraportable laptops.
- Form Factor: HDMI is the ubiquitous port found on TVs, monitors, projectors, and larger devices. Mini HDMI targets devices where space is constrained.
- Cable/Adapter Requirement: Connecting Mini HDMI (source) to a standard HDMI (display) requires a specific Mini-HDMI to HDMI cable or adapter. Standard HDMI cables do not plug into Mini ports.
Performance & Capabilities (HDMI 2.0/2.1 Standard)
There is no inherent performance difference between standard HDMI (Type-A) and Mini HDMI (Type-C) ports when used with cables supporting the same HDMI specification version. The performance (bandwidth, resolution, features) is determined by the underlying HDMI specification implemented by the device (e.g., HDMI 2.0, HDMI 2.1), not the connector size.
- Shared Maximum Capabilities (e.g., HDMI 2.1): Both connector types can support high resolutions (4K @ 120Hz, 8K @ 60Hz), HDR (HDR10, Dolby Vision), eARC, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), provided the host devices and cable support the necessary spec.
- Requirement: Ensure the cable used (Mini-HDMI to HDMI) is rated for the HDMI specification version and bandwidth needed for the desired resolution/refresh rate/HDR (e.g., Ultra High Speed HDMI Certified for HDMI 2.1 features).
Choosing Between Them
The choice between HDMI and Mini HDMI is dictated solely by the physical constraints of the devices you're connecting:
- Use HDMI (Type-A): For TVs, monitors, desktop PCs, gaming consoles, AV receivers, and laptops with sufficient space.
- Use Mini HDMI (Type-C): For smaller devices like DSLR/mirrorless cameras, GoPros, compact tablets, or ultra-slim laptops where a full-sized port is impractical.
Remember: Both connectors deliver identical signal quality and feature sets for the same HDMI specification version. The core difference lies in physical dimensions and their typical device applications.
